La protection PTC se réarme automatiquement et protège en permanence votre circuit.
CARACTERISTIQUES :
-basse résistance
-haut courant de maintien
-solid state
-connexions radiales
SPECIFICATIONS :
-courant de maintien Ih (A): 1.85
-courant de basculement It (A): 3.70
-temporisation max. de basculement (à 5 x Ih): 8.7
-courant max. Imax (A): 40
-tension nominale Vmax (Vcc): 30
-puissance nom. Pd (W): 1.0
-tolérance de résistance:
-Rmin (ohm): 0.030
-Rmax. (1 heure après basculement) (ohm): 0.09

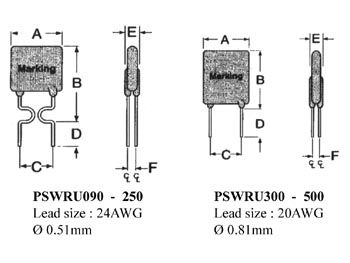

-dimensions:
-A (max): 10.2
-B (max): 15.7
-C (typ): 5.1
-D (min): 7.6
-E (max): 3.0
-F (typ): 0.9
-courant de maintien: 900mA ~ 9.0A
-courant max.: 40A
-tension max.: 30V

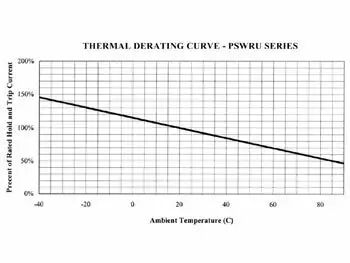

-plage de température: -40°C à +85°C
-matériaux:
-connexions: cuivre étamé
-isolation: epoxy retarde le feu selon UL-94V-O
Voir notice et fiche technique fabricant
