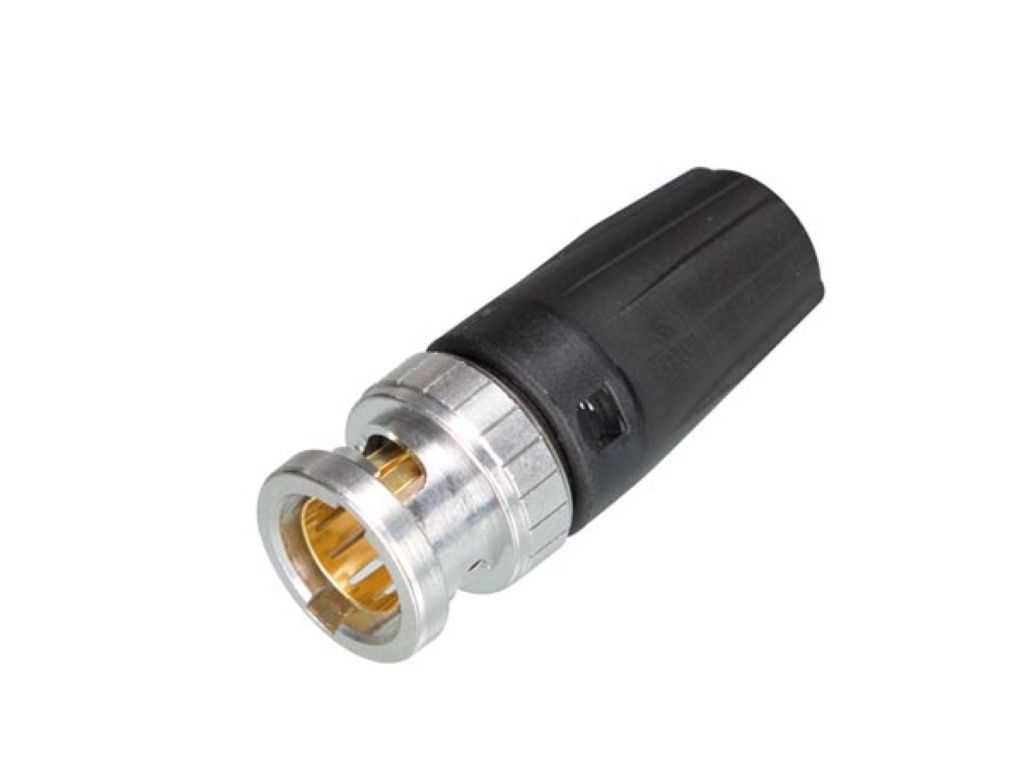

Neutrik - bnc - for video - 75 ohms - push-pull (NBNC75BLP9)

The rearTWIST BNC cable connector offers a true 75 ohm design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers colour coding.

CARACTERISTIQUES :

-"rearTWIST Principle" locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
-ideal for recessed bulkheads where access to the "head" of the connector might be an issue. These connectors turn from the back and not the front.
-true 75 ohm design meets the stringent HDTV / DVD requirements
-leading area: avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
-snug-fit centre pin insert provides tactile feedback
-shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
-excellent cable protection and retention
-precise Swiss machined brass parts for outstanding durability
-accessories include colour-coded boots in 10 standard colours, crimp tool and dies


SPECIFICATIONS :

-crimp size:
-pin: 1.6 mm (square)
-shield: 6.47 mm (hex)



Voir notice et fiche technique fabricant
